iWash

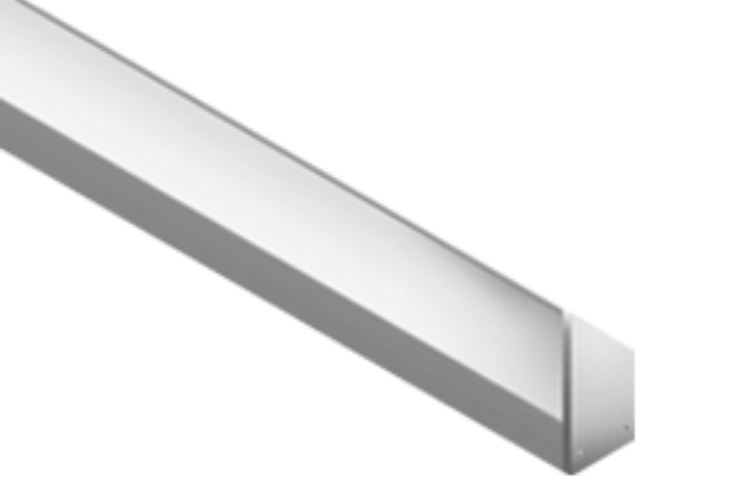

iWash is a minimalistic linear profile creating a asymmetric light effect for a uniform illumination of surfaces and shelves due to its narrow opal or transparent PMMA design cover. Perfectly suitable to be mounted under shelves, in ceilings or in furniture. iWash can be equipped with a single or double LED strip and delivers a maximum lumen package of 1200 lumens per meter from carefully selected binning-free two-step Macadam’s ellipses SMD LEDs with a choice of 3 standard colour temperatures (2700K, 3000K, 4000K). iWash is powered on 24Vdc constant voltage.
.
Generate a product code
IWA.--.-.--.----.--
Copy to clipboard
Colour Temp.
Optics
Finishing
Length
Power
Colour Temp.
- 27 - 2700K
- 30 - 3000K
- 40 - 4000K
Optics
- Opal screen - 95°
- Transparent screen - 95°
Finishing
- 07 - Natural anodized aluminium
Length
- 050 - 50 cm
- 100 - 100 cm
- 150 - 150 cm
- 200 - 200 cm
Power
- 07 - 6,25W
- 12 - 12,5W
- 19 - 18,75W
- 25 - 25W
Body
Extruded aluminium
Finishes
Natural anodized aluminium
Installation
Surface mounted / Recessed
Power Supply Cables
45 cm cable 2x0,5 mm2
Power Supply
Constant voltage 24Vdc
Power Consumption
20W per meter
Lumen Output
Max. 1200 lm per meter
Working Temperature
-20°C +45°C
IP Rating
IP40
Insulation Class
III
Weight
0,34 kg per meter
| Code | #iWash | Input | Output | IP | Sizes | Weight | ||
|---|---|---|---|---|---|---|---|---|
| ON/OFF | PSU.CV.005 | Max 1m | 90÷305V 47/63 Hz |
24Vdc -25Watt | IP67 | 32mm (height) 148mm (length) 40mm (width) |
360g |  |
| PSU.CV.006 | Max 3m | 90÷305V 47/63 Hz |
24Vdc -60Watt | IP67 | 32mm (height) 162mm (length) 43mm (width) |
450g | |
|
| PSU.CV.007 | max 4m | 90÷305V 47/63 Hz |
24Vdc -90Watt | IP67 | 36mm (height) 161mm (length) 61mm (width) |
700g | |
|
| PSU.CX.004 | Max 1m | 110÷240V 50/60 Hz |
24Vdc - 20Watt | IP20 | 22mm (height) 110mm (length) 52mm (width) |
108g | |
|
| Dimmable | PSU.CX.001 | Max 1m (1-10V / Push) | 100÷240V 50/60 Hz |
24Vdc - 20Watt | IP20 | 21mm (height) 103mm (length) 67mm (width) |
135g | |
| PSU.CX.002 | Max 1m (DALI) | 100÷240V 50/60 Hz |
24Vdc - 20Watt | IP20 | 21mm (height) 103mm (length) 67mm (width) |
135g | |
