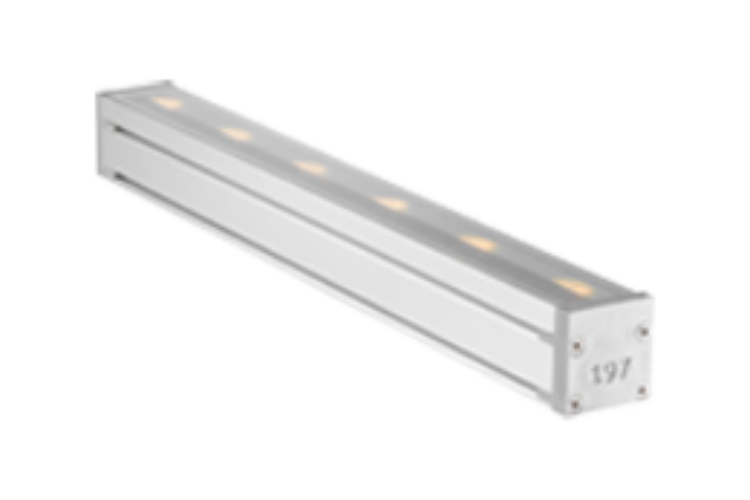

Slash 30

Slash 30 is made of extruded high quality anticorodal hard anodised aluminium and is designed for outdoor in-ground or surface mounted applications. It is available with 4 different optics including wall washing and wall grazing. The Slash 30 offers 2200K, 2700K, 3000K and 4000K as standard colour temperatures aswell as RGBW and Tunable white. Glare control is further enhanced by the unique linear anti-glare louvre, which is especially designed for wall washing and grazing applications providing exceptional uniformity.

A housing box is available for convenient and a continuous ground installation and adjustable brackets are available for a surface mounted installation.

Generate a product code

----.--.-.--.----.--

Copy to clipboard

Clear filters

Product code

Colour Temp.

Optics

Finishing

Length

Power

Product Code

S30A - Slash 30 Pitch 5
S30B - Slash 30 Pitch 10
S30R - Slash 30 RGBW
S30T - Slash 30 Tunable White

Colour Temp.

22 - 2200K
27 - 2700K
30 - 3000K
40 - 4000K
FC - RGBW
TW - Tunable white

Optics

Narrow - 12° / (12° RGBW and TW)°
Medium - 21° / (25° RGWB and TW)°
Wide - 31° / (37° RGWB and TW)°
Flood - 46°
Elliptical - 13°x36°

Finishing

07 - Natural anodized aluminium

Length

02 - 282 mm
05 - 568 mm
08 - 853 mm
11 - 1139 mm

Power

03 - 3,5W (S30B)
06 - 6,4W (S30A)
07 - 7 W (S30B)
10 - 10,5W (S30B)
12 - 12,8W (S30A)
13 - 13,4W (S30A)
14 - 14W (S30B, S30R, S30T)
15 - 15W (S30B)
19 - 19,2W (S30A)
21 - 21,3W (S30B)
25 - 25,6W (S30A)
26 - 26,8W (S30A)
28 - 28W (S30R, S30T)
30 - 30W (S30B)
40 - 40,2W (S30A)
42 - 42W (S30R, S30T)
53 - 53,6W (S30A)
56 - 56W (S30R, S30T)

Body

Extruded aluminium

Finishes

Natural anodized aluminium

Installation

Housing box / Fixing brackets

Power Supply Cables

IP68 30cm Cable with Easy Lock connector

Power Supply

Constant voltage 24Vdc

Power Consumption

13.4W / 26.8W / 40.2W / 53.6W

Lumen Output

1140 / 2280 / 3420 / 4560 lm

Working Temperature

- 20°C + 50°C

IP Rating

IP67

Insulation Class

Class III

Weight

460 g / 880 g / 1.3 kg / 1.72 kg

	Code	Input	Output	IP	Sizes	Weight
ON/OFF	PSU.CX.004	110÷240V 50/60 Hz	24Vdc - 20Watt	IP20	22mm (height) 110mm (length) 52mm (width)	108g
	PSU.CV.005	90÷305V 47/63 Hz	24Vdc -25Watt	IP67	32mm (height) 148mm (length) 40mm (width)	360g
	PSU.CV.006	90÷305V 47/63 Hz	24Vdc -60Watt	IP67	32mm (height) 162mm (length) 43mm (width)	450g
	PSU.CV.007	90÷305V 47/63 Hz	24Vdc -90Watt	IP67	36mm (height) 161mm (length) 61mm (width)	700g
	PSU.CV.021	90÷305V 47/63 Hz	24Vdc -240Watt	IP67	38,8mm (height) 244,2mm (length) 68mm (width)	1,3Kg
Dimmable	CGE.004 1-10V	24Vdc	24Vdc - 156Watt	IP20	25mm (height) 45mm (length) 58mm (width)	40g
	CGE.017- DALI	24Vdc	24Vdc - 156Watt	IP20	25mm (height) 45mm (length) 58mm (width)	40g
	CGE.017.IP - DALI	24Vdc	24Vdc - 156Watt	IP67	25mm (height) 95mm (length) 40mm (width)	280g
	CGE.020- DMX	24Vdc	24Vdc - 156Watt	IP20	25mm (height) 45mm (length) 58mm (width)	40g
	CGE.016 - DALI RGBW	24Vdc	24Vdc - 480Watt	IP20	62mm (height) 91mm (length) 71mm (width)	128g
	CGE.019 - DMX RGBW	24Vdc	24Vdc - 480Watt	IP20	62mm (height) 91mm (length) 71mm (width)	128g
