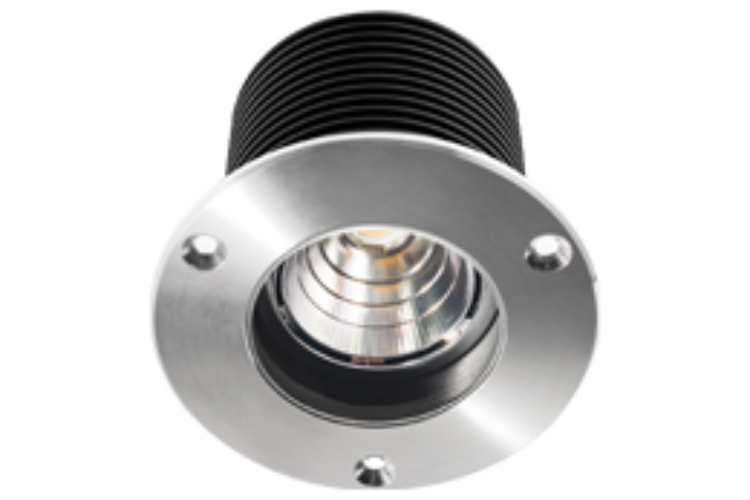

Polar
Polar is a professional anti-vandal IP68 downlight, with a deep recessed COB LED light source and features high efficiency reflector technology for excellent glare control and uniformity. Polar offers a choice between three standard color temperatures (2700K, 3000K and 4000K) all with CRI > 93 for excellent color rendering. Compatible PSUs available for Polar allow for DALI or 1-10V dimming. Polar is perfectly suitable for public spaces and marine applications.
.
Generate a product code
• • •
Colour Temp.
Optics
Finishing
Colour Temp.
- 27 - 2700K
- 30 - 3000K
- 40 - 4000K
Optics
- Narrow - 20°
- Medium - 32°
- Wide - 40°
Finishing
- 03 - Bianco RAL 9003
POL.--.-.--
Copy to clipboard
Body
Die-cast aluminium
Finishes
Stainless steel AISI316L
Installation
AISI 316L anti-vandal fixing screws
Power Supply Cables
35 cm PVC 2x0,5 mm2
Power Supply
Constant current 350mA Max
Power Consumption
9,3 Watt Max
Lumen Output
850 lm
Working Temperature
-20°C +45°C
IP Rating
IP68 (not for permanent immersion)
Insulation Class
III
Weight
440 g
Code | #Polar | Input | Output | IP | Sizes | Weight | ||
---|---|---|---|---|---|---|---|---|
ON/OFF | PSU.CX.003 | Max 1 | 100÷240V 50/60 Hz |
500mA | IP20 | 21mm (height) 103mm (length) 67mm (width) |
120g | |
PSU.CX.004 | Max 1 | 100÷240V 50/60 Hz |
500mA | IP20 | 22mm (height) 111mm (length) 52mm (width) |
108g | |
|
Dimmable | PSU.CX.001 | Max 1 (1-10V / Push) | 100÷240V 50/60 Hz |
500mA | IP20 | 21mm (height) 103mm (length) 67mm (width) |
120g | |
PSU.CX.002 | Max 1 (DALI) | 100÷240V 50/60 Hz |
500mA | IP20 | 21mm (height) 103mm (length) 67mm (width) |
120g | |
|
PSU.CC.015 | Max 2 (1-10V / DALI / Push) | 100÷240V 50/60 Hz |
500mA | IP20 | 22mm (height) 124mm (length) 79mm (width) |
140g | |

Honeycomb Louver

Micro prismatic diffuser
