Explorer 125-1

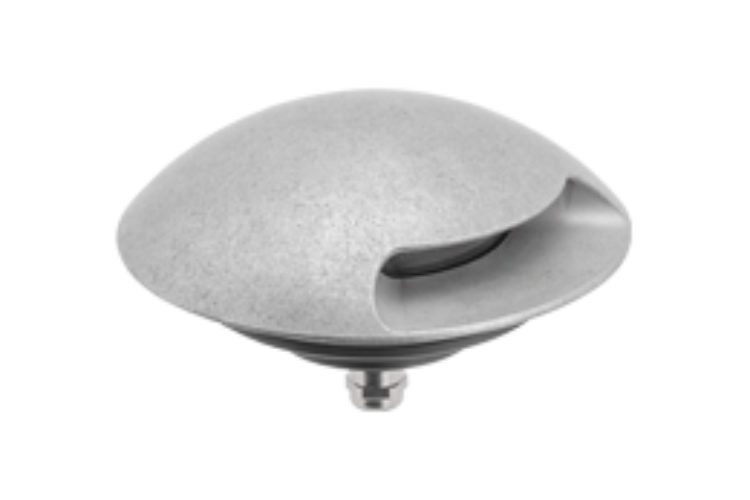

Explorer 125-1 is a radial floor washer designed to light flat areas, decks and paths. Explorer 125-1 offers a choice of three colour temperatures as standard (2700K, 3000K, 4000K and RGBW) and delivers 90CRI for excellent colour rendering, and with binning-free LEDs carefully selected from two-step Macadam’s ellipses, colour consistency is assured throughout the unonovesette portfolio.

Constructed from AISI316L marine-grade stainless steel or aged solid brass with a hard anodized aluminium heatsink, and ingress protected to IP68. Explorer 125-1 renders an additional draining system as unnecessary.

Read more

Generate a product code

Colour Temp.
Optics
Finishing
Colour Temp.
  • 27 - 2700K
  • 30 - 3000K
  • 40 - 4000K
  • RBGW - RGBW
Optics
  • Narrow - 20°
  • Radial - 90°
Finishing
  • 03 - Stainless steel AISI316L
  • 10 - Aged Brass
E125-1.--.-.--
Copy to clipboard
Body
Stainless Steel AISI316L - Anodized aluminium 6026 / Machined aged brass - Anodized aluminium 6026
Finishes
Stainless Steel AISI316L / Aged solid brass
Installation
Housing box
Power Supply Cables
35 cm NS20N PCP 2x0,5 mm2 / 35 cm 8x0,22 mm² (RGBW)
Power Supply
Constant voltage 24Vdc / Constant current 700mA (RGBW)
Power Consumption
5 Watt / 9 Watt
Lumen Output
515 lm / 730 lm (3000K)
Working Temperature
-20°C +50°C
IP Rating
IP68 (not for permanent immersion)
Insulation Class
Class III
Weight
1,2 Kg1,2 Kg
Code #Explorer 125-1 Input Output IP Sizes Weight
ON/OFF PSU.CX.004 Max 8 110÷240V
50/60 Hz
24Vdc - 20Watt IP20 22mm (height)
110mm (length)
52mm (width)
108g
PSU.CV.005 Max 12 90÷305V
47/63 Hz
24Vdc - 25Watt IP67 32mm (height)
148mm (length)
40mm (width)
360g
PSU.CV.006 Max 28 90÷305V
47/63 Hz
24Vdc - 60Watt IP67 32mm (height)
162mm (length)
43mm (width)
450g
PSU.CV.007 Max 40 90÷305V
47/63 Hz
24Vdc - 90Watt IP67 36mm (height)
161mm (length)
61mm (width)
700g
Dimmable CGE.004 1-10V 24Vdc
24Vdc - 156Watt IP20 25mm (height)
45mm (length)
58mm (width)
40g
CGE.017- DALI 24Vdc
24Vdc - 156Watt IP20 25mm (height)
45mm (length)
58mm (width)
40g
CGE.017.IP - DALI 24Vdc
24Vdc - 156Watt IP67 90mm (height)
40mm (length)
40mm (width)
250g
CGE.020- DMX 24Vdc
24Vdc - 156Watt IP20 25mm (height)
45mm (length)
58mm (width)
40g
CGE.005 - DMX RGBW 12-48 Vdc
4x 350mA / 4x 700mA IP20 62mm (height)
91mm (length)
71mm (width)
125g
HB.012
Housingbox
CV00040
Cable 10m
CV00041
Cable 15m
CV00042
Cable 20m
CV00043
Cable 25m
CV00106
Cable RGBW 5m
CV00107
Cable RGBW 10m
CV00108
cable RGBW 15m
CV00109
Cable RGBW 20m
CV00110
Cable RGBW 25m
