Tracer 60

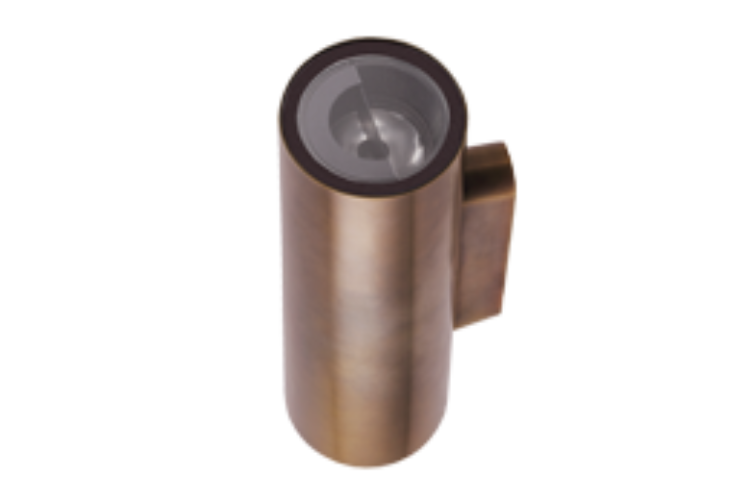

Tracer 60 is an extremely efficient compact up and down wall washer, designed for optical excellence and engineered for complete resilience.
Tracer 60 features the unonovesette Smart Shield system, complete with an integrated constant current driver, which allows the luminaire to be powered in parallel with a 24Vdc constant voltage power supply.
Finishes include as standard aged solid brass, white and black aluminium and on request any RAL colour is available.

With a deep recess of the in-house designed PCB, Tracer 60 offers excellent glare control. Available with a choice of four beam angles (10°, 30°, 50°, elliptical optics). Delivered through integration of Total Internal Reflection (TIR) optical technology, which ensure maximum efficacy and complete control of light distribution.
Factory-sealed options include a honeycomb louver and a dedicated anti-glare louver for glare control.

Read more

Generate a product code

T60.--.-.--.----.--
Copy to clipboard

Colour Temp.
Optics
Finishing
Power
Colour Temp.
  • 27 - 2700K
  • 30 - 3000K
  • 40 - 4000K
Optics
  • NN - 10° + 10°
  • NM - 10° + 30°
  • NW - 10° + 50°
  • NE - 10° + 10°x45°
  • MM - 30° + 30°
  • MW - 30° + 50°
  • ME - 30° + 10°x45°
  • WW - 50° + 50°
  • WE - 50° + 10°x45°
  • EE - 10°x45° + 10°x45°
Finishing
  • 01 - White RAL 9003
  • 02 - Black RAL 9005
  • 10 - Aged solid brass
  • 21 - Pre-aged solid brass
Power
  • 10 - 10W
  • 18 - 18W
Body
Brass
Finishes
White RAL 9003 / Black RAL 9005 / Aged solid brass / Pre-aged solid brass
Installation
Surface mounted
Power Supply Cables
35 cm NS20N PCP 2x0,5 mm2
Power Supply
Constant voltage 24Vdc
Power Consumption
10W / 18W
Lumen Output
Source: 2x647 lm / 2x896 lm (3000K) Delivered: 2x409 lm / 2x590 lm (3000K)
Working Temperature
-20°C +50°C
IP Rating
IP66
Insulation Class
III
Weight
1,35 kg
Code #Tracer 60 Input Output IP Sizes Weight
ON/OFF PSU.CV.005 Max 1 90÷305V
47/63 Hz 		24Vdc - 25Watt IP67 32mm (height)
148mm (length)
40mm (width) 		360g
PSU.CV.006 Max 3 90÷305V
47/63 Hz 		24Vdc - 60Watt IP67 32mm (height)
162mm (length)
43mm (width) 		450g
PSU.CV.007 Max 4 90÷305V
47/63 Hz 		24Vdc - 90Watt IP67 36mm (height)
161mm (length)
61mm (width) 		700g
PSU.CV.021 Max 11 90÷305V
47/63 Hz 		24Vdc -240Watt IP67 38,8mm (height)
244,2mm (length)
68mm (width) 		1,3Kg
Dimmable CGE.004 1-10V 24Vdc
 24Vdc - 156Watt IP20 25mm (height)
45mm (length)
58mm (width) 		100g
CGE.017- DALI 24Vdc
 24Vdc - 156Watt IP20 25mm (height)
45mm (length)
58mm (width) 		40g
CGE.017.IP - DALI 24Vdc
 24Vdc - 156Watt IP67 25mm (height)
45mm (length)
58mm (width) 		130g
CGE.020- DMX 24Vdc
 24Vdc - 156Watt IP20 25mm (height)
45mm (length)
58mm (width) 		100g
ACC.004
Honeycomb louver
ACC.073
Anti-Glare louver
