Ranger 30

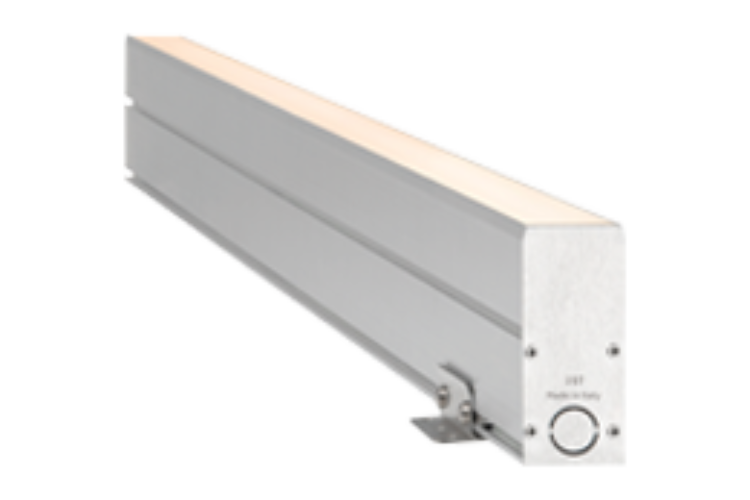

Ranger 30 is an IP67 in-ground drive-over linear profile designed to allow multiple units to be placed end-to-end and produce continuous illumination without interruption. The latest generation LED engine developed in-house is available in 2200K, 2700K, 3000K, 4000K and RGBW. The dedicated IP68 plug and play cabling system caters for an easy, fast and safe installation. Ranger 30 is available in 3 different sizes (510mm, 1010mm and 2010mm).
A hard-anodised aluminium housing box is available for convenient ground installation as well as accessories to align the housing boxes.

Generate a product code

R30.--.-.--.----.--

Copy to clipboard

Clear filters

Colour Temp.

Optics

Finishing

Length

Power

Colour Temp.

22 - 2200K
27 - 2700K
30 - 3000K
40 - 4000K
FC - RGBW

Optics

Diffused - 150°

Finishing

11 - Opal white

Length

0510 - 510 mm
1010 - 1010 mm
2010 - 2010 mm

Power

06 - 6W
12 - 12W
23 - 23W (RGBW)
24 - 24
46 - 46W (RGBW)

Body

Extruded PMMA with opal

Finishes

Opal white

Installation

Housing box

Power Supply Cables

IP68 30cm Cable

Power Supply

24 Vdc

Power Consumption

White 12W/m RGBW 23W/m

Lumen Output

300 lm per meter

Working Temperature

- 20°C + 50°C

IP Rating

IP67

Insulation Class

Class III

Weight

560g / 1115g / 2220g

	Code	#Ranger 30	Input	Output	IP	Sizes	Weight
ON/OFF	PSU.CX.004	1,5 m	110÷240V 50/60 Hz	24Vdc - 20Watt	IP20	22mm (height) 110mm (length) 52mm (width)	108g
	PSU.CV.005	1,5 m	90÷305V 47/63 Hz	24Vdc -25Watt	IP67	32mm (height) 148mm (length) 40mm (width)	360g
	PSU.CV.006	4,5 m	90÷305V 47/63 Hz	24Vdc -60Watt	IP67	32mm (height) 162mm (length) 43mm (width)	450g
	PSU.CV.007	7 m	90÷305V 47/63 Hz	24Vdc -90Watt	IP67	36mm (height) 161mm (length) 61mm (width)	700g
	PSU.CV.021	15m	90÷305V 47/63 Hz	24Vdc -240Watt	IP67	38,8mm (height) 244,2mm (length) 68mm (width)	1,3Kg
Dimmable	CGE.004 1-10V		24Vdc	24Vdc - 156Watt	IP20	25mm (height) 45mm (length) 58mm (width)	40g
	CGE.017- DALI		24Vdc	24Vdc - 156Watt	IP20	25mm (height) 45mm (length) 58mm (width)	40g
	CGE.017.IP - DALI		24Vdc	24Vdc - 156Watt	IP67	25mm (height) 95mm (length) 40mm (width)	280g
	CGE.020- DMX		24Vdc	24Vdc - 156Watt	IP20	25mm (height) 45mm (length) 58mm (width)	40g
	CGE.016 - DALI RGBW		24Vdc	24Vdc - 480Watt	IP20	62mm (height) 91mm (length) 71mm (width)	128g
	CGE.019 - DMX RGBW		24Vdc	24Vdc - 480Watt	IP20	62mm (height) 91mm (length) 71mm (width)	128g
