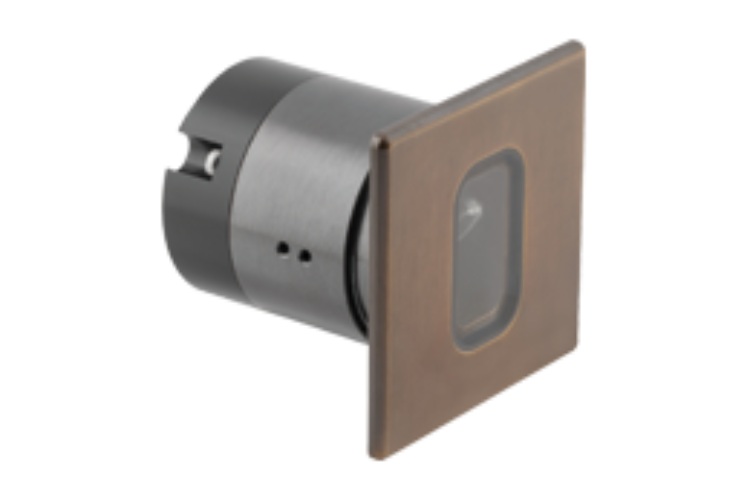

Caliber Wall Q

Caliber Wall Q is an extremely efficient compact LED wall-light recessed wall or in-ground drive-over, designed with an angled perspective of 30 ° for optical excellence and engineered for complete resilience.
Caliber Wall Q features the unonovesette Smart Shield system, complete with an integrated constant current driver, which allows the luminaire to be powered in parallel with a 12Vdc up to 24Vdc constant voltage power supply. Easy dimming is supported via a 24Vdc dimmable power supply or by a DALI or DMX system.

A housing box accessory is available for convenient ground or wall installation.

Read more

Generate a product code

Colour Temp.
Optics
Finishing
Colour Temp.
  • 22 - 2200K
  • 27 - 2700K
  • 30 - 3000K
  • 40 - 4000K
Optics
  • Narrow - 10°
  • Wide - 40°
Finishing
  • 03 - Stainless steel AISI316L
  • 10 - Aged Brass
CWQ.--.-.--
Copy to clipboard
Body
Stainless steel AISI316L
Finishes
Stainless steel AISI316L / Aged brass
Installation
Housing box / Fixing springs
Power Supply Cables
35 cm NS20N PCP 2x0,5 mm2
Power Supply
12-24Vdc
Power Consumption
Max 2 Watt
Lumen Output
140 lm
Working Temperature
-20°C +45°C
IP Rating
IP68 (not for permanent immersion)
Insulation Class
III
Weight
208g
Code #Caliber Wall Q Input Output IP Sizes Weight
ON/OFF PSU.CX.004 Max 8 110÷240V
50/60 Hz
24Vdc - 20Watt IP20 22mm (height)
110mm (length)
52mm (width)
108g
PSU.CV.005 Max 10 90÷305V
47/63 Hz
24Vdc -25Watt IP67 32mm (height)
148mm (length)
40mm (width)
360g
PSU.CV.006 Max 25 90÷305V
47/63 Hz
24Vdc -60Watt IP67 32mm (height)
162mm (length)
43mm (width)
450g
PSU.CV.007 Max 36 90÷305V
47/63 Hz
24Vdc -90Watt IP67 36mm (height)
161mm (length)
61mm (width)
700g
Dimmable CGE.004 1-10V 24Vdc
24Vdc - 156Watt IP20 25mm (height)
45mm (length)
58mm (width)
40g
CGE.017- DALI 24Vdc
24Vdc - 156Watt IP20 25mm (height)
45mm (length)
58mm (width)
40g
CGE.017.IP - DALI 24Vdc
24Vdc - 156Watt IP67 25mm (height)
45mm (length)
58mm (width)
130g
CGE.020- DMX 24Vdc
24Vdc - 156Watt IP20 25mm (height)
45mm (length)
58mm (width)
40g
HB.002
Housing Box
ACC.050
Fixing springs
CV00037
Cable 5m
CV00040
Cable 10m
CV00041
Cable 15m
CV00042
Cable 20m
CV00043
Cable 25m
