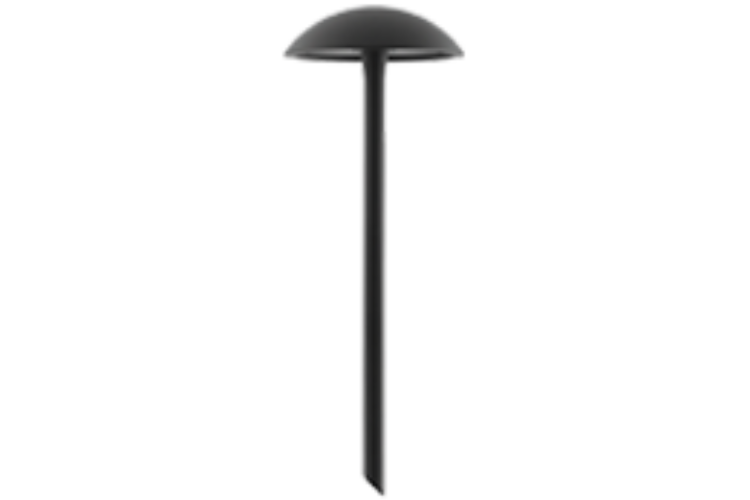

APOLLO GIARDINO
Apollo Giardino is a decorative and elegant light suitable for any outdoor context. With its diffused optic, it creates an enveloping and warm atmosphere. It offers a choice of three colour temperatures 2200K, 2700K, 3000K and is dimmable without flicker down to 0.1%. Apollo Giardino is available with a ground spike with two different lengths, 60 and 90cm.
.
Generate a product code
APG.--.-.--.----.--
Copy to clipboard
Colour Temp.
Optics
Finishing
Power
Colour Temp.
- 22 - 2200K
- 27 - 2700K
- 30 - 3000K
Optics
- Diffused - °
Finishing
- 01 - White RAL 9003
- 02 - Black RAL 9005
- 16 - Flamed bronze
- 23 - Green RAL 6003
- 20 - Corten
Power
- 7 - 7W
Body
Aluminium anticorodal 6082
Finishes
White RAL 9003 / Black RAL 9005 / Flamed bronze / Corten / Green RAL 6003
Installation
Ground Spike / Base with anchor bolts / Base with housing box for power supply
Power Supply Cables
200 cm 2x0,5 mm2
Power Supply
24Vdc / Constant Voltage
Power Consumption
7W
Lumen Output
Source: 773 lm (3000K) Delivered: 402 lm (3000K)
Working Temperature
-20°C + 50°C
IP Rating
IP66
Insulation Class
III
Weight
430g
Code | #APOLLO GIARDINO | Input | Output | IP | Sizes | Weight | ||
---|---|---|---|---|---|---|---|---|
ON/OFF | PSU.CX.004 | Max 2 | 110÷240V 50/60 Hz |
24Vdc - 20Watt | IP20 | 22mm (height) 110mm (length) 52mm (width) |
108g | |
PSU.CV.005 | Max 3 m | 90÷305V 47/63 Hz |
24Vdc 25Watt | IP67 | 32mm (height) 148mm (length) 40mm (width) |
360g | ||
PSU.CV.006 | Max 8 | 90÷305V 47/63 Hz |
24Vdc -60Watt | IP67 | 32mm (height) 162mm (length) 43mm (width) |
450g | ||
PSU.CV.007 | Max 11 m | 90÷305V 47/63 Hz |
24Vdc 90Watt | IP67 | 36mm (height) 161mm (length) 61mm (width) |
700g | ||
Dimmable | CGE.004 1-10V | 24Vdc |
24Vdc - 288Watt | IP20 | 25mm (height) 80mm (length) 40mm (width) |
40g | ||
CGE.017- DALI | 24Vdc |
24Vdc - 288Watt | IP20 | 25mm (height) 80mm (length) 40mm (width) |
40g | |||
CGE.017.IP - DALI | 24Vdc |
24Vdc - 156Watt | IP67 | 25mm (height) 95mm (length) 40mm (width) |
280g | |||
CGE.020- DMX | 24Vdc |
24Vdc - 156Watt | IP20 | 25mm (height) 45mm (length) 58mm (width) |
40g |
ACC.149.060
Ground Spike 60cm
Ground Spike 60cm
ACC.157.060
Base with anchor bolts 60cm
Base with anchor bolts 60cm
ACC.158.060

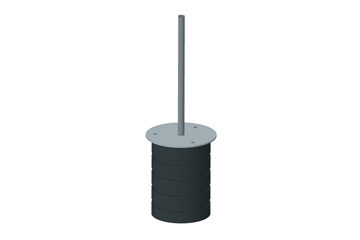

Base with housing box for power supply 60cm
Base with housing box for power supply 60cm
ACC.149.090
Ground Spike 90cm
Ground Spike 90cm
ACC.157.090
Base with anchor bolts 90cm
Base with anchor bolts 90cm
ACC.158.090
Base with housing box for power supply 90cm
Base with housing box for power supply 90cm
CV00037
Cable 5m
Cable 5m
CV00040
Cable 10m
Cable 10m
CV00041
Cable 15m
Cable 15m
CV00042
Cable 20m
Cable 20m
CV00043
Cable 25m
Cable 25m
